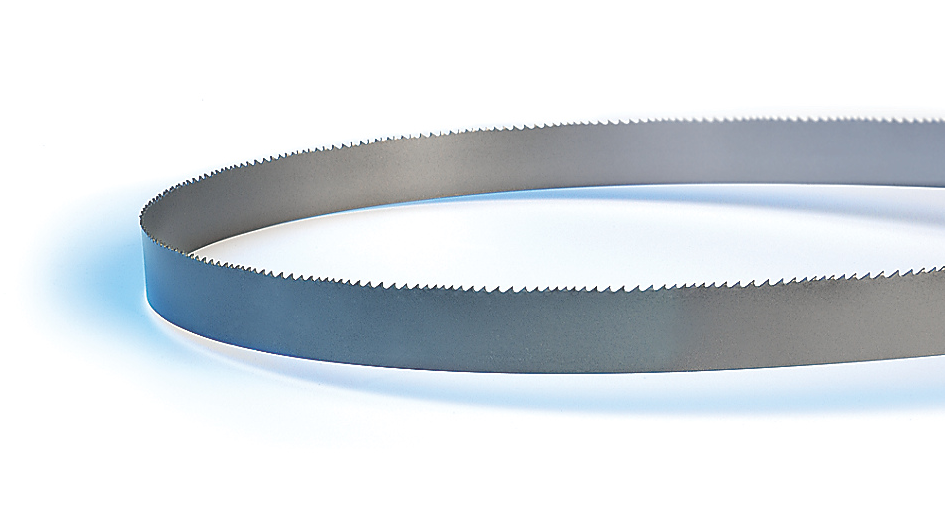

Lenox Classic™
Entry-level multipurpose blades
BLADE WITH EXCEPTIONAL SERVICE LIFE
Preparation patented backing steel increases service life. Robust M42 edge in HSS for external resistance to heat and wear.
EXTREMELY VERSATILE
Cuts a wide range of metals from low-carbon steels to higher tensile strength alloys. Advanced design to cut large volumes of solid workpieces and profiles.
CONSISTENT PERFORMANCE TIME AFTER TIME
Unique tooth geometry and setting reduce noise and vibration from initial start-up.
Extra information
Application
Structural steels, Aluminum/Non-Ferrous, Carbon steels, Alloy steels, Stainless steels, Tool steels
Height
12,7 mm, 19 mm, 27 mm, 34 mm
Width
0.64 mm, 0.90 mm, 1.07 mm
Teeth per inch
4/6, 5/8, 6/10, 8/12, 10/14
Specifications & Application
| Width & thickness | TPI (teeth per inch) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Vari-Tooth | Rechte tandsteek | |||||||||||||
| In millimetres | 4/6 | 5/8 | 6/8 | 6/10 | 8/12 | 10/14 | 14/18 | 3 | 4 | 6 | 10 | 14 | 18 | 24 |
| 6,4 x 0,64 | ✔ | ✔ | ✔ | |||||||||||
| 6,4 x 0,90 | ✔ | ✔ | ||||||||||||
| 9,5 x 0,64 | ✔ | ✔ | ||||||||||||
| 9,5 x 0,90 | ✔ | ✔ | ✔ | |||||||||||
| 12,7 x 0,50 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||||
| 12,7 x 0,64 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||||
| 12,7 x 0,91 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||||||
| 19 x 0,90 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||||
| 27 x 0,90 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||
| 34 x 1,07 | ✔ | ✔ | ✔ | ✔ | ✔ | |||||||||
