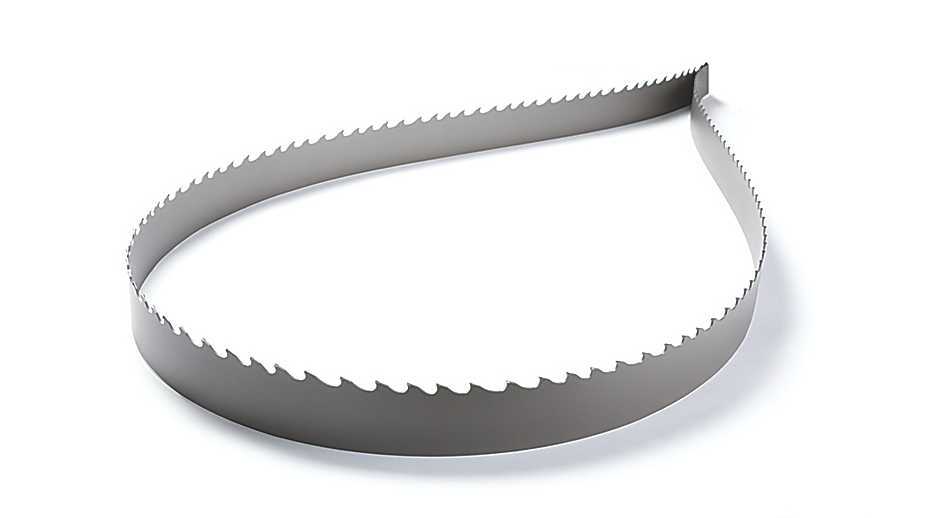

Lenox Max CT™
Maximum cutting performance on Aerospace alloys
EXCEPTIONAL BLADE DURABILITY
Multi chip tooth pattern balances chip load and reduces cutting forces
FASTER, STRAIGHTER CUTS
Optimised geometry of the chipping area increases beam strength for straighter cuts
SUPERIOR FINISHING PARTS
Precision ground carbides provide razor-sharp teeth for a mirror-like finish on machined parts
Extra information
Application
Aluminum/Non-Ferrous, Stainless steels, Tool steels, Titanium alloys, Nickel-based alloys (inconel)
Height
34 mm, 41 mm, 54 mm, 67 mm, 80 mm
Width
1.07 mm, 1.27 mm, 1.60 mm
Teeth per inch
2/3
Specifications & Application
| Width & thickness | TPI (teeth per inch) | |||
|---|---|---|---|---|
| In millimetres | 0,9/1,1 | 1,0/1,4 | 1,4/2,0 | 2/3 |
| 34 x 1,07 | ✔ | |||
| 41 x 1,27 | ✔ | ✔ | ||
| 54 x 1,60 | ✔ | ✔ | ✔✔ | ✔ |
| 67 x 1,60 | ✔ | ✔ | ✔ | |
| 80 x 1,60 | ✔ | |||
✔✔ = Extra-wide saw cut available to prevent blade jamming
