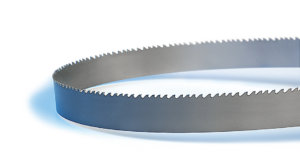

Lenox QXP™
Long blade life at high cutting speeds
LONG SERVICE LIFE. FAST SAWING
Solid pieces with mild to medium machinability
Patented support steel preparation provides increased fatigue resistance
PENETRATES WITH LESS FEED FORCE
Extreme positive rake tooth shape
INCREASED CUTTING SPEEDS
Deep trench design
Extra information
Application
Aluminum/Non-Ferrous, Carbon steels, Alloy steels, Bearing steels, Mold steels, Stainless steels, Tool steels
Height
19 mm, 27 mm, 34 mm, 41 mm, 54 mm, 67 mm, 80 mm
Width
0.90 mm, 1.07 mm, 1.27 mm, 1.60 mm
Teeth per inch
2/3, 3/4, 4/6, 5/8
Specifications & Application
| Width & thickness | TPI (teeth per inch) | |||||
|---|---|---|---|---|---|---|
| In millimetres | 1,0/1,3 | 1,5/2,0 | 2/3 | 3/4 | 4/6 | 5/8 |
| 19 x 0,90 | ✔ | |||||
| 27 x 0,90 | ✔ | ✔ | ✔ | ✔ | ||
| 34 x 1,07 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 41 x 1,27 | ✔ | ✔ | ✔ | ✔ | ||
| 54 x 1,60 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 67 x 1,60 | ✔ | ✔ | ✔ | ✔ | ||
| 80 x 1,60 | ✔ | |||||
