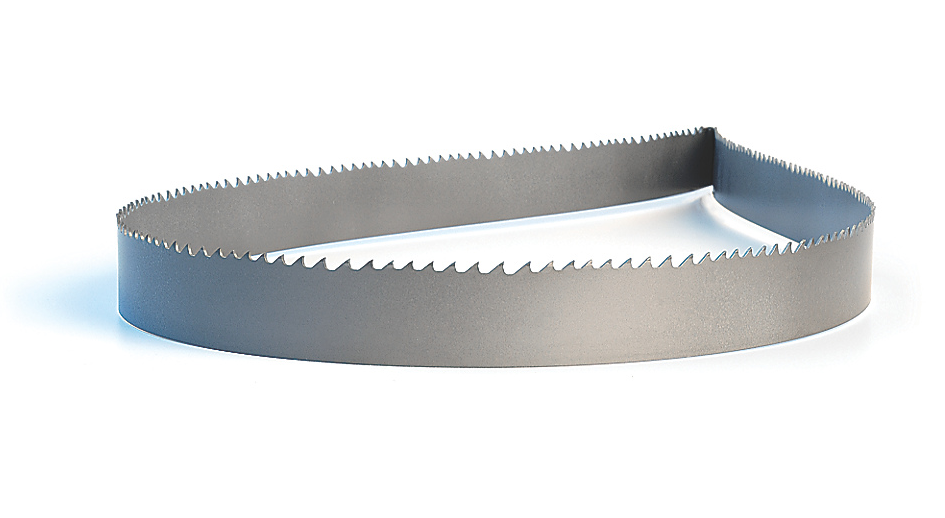

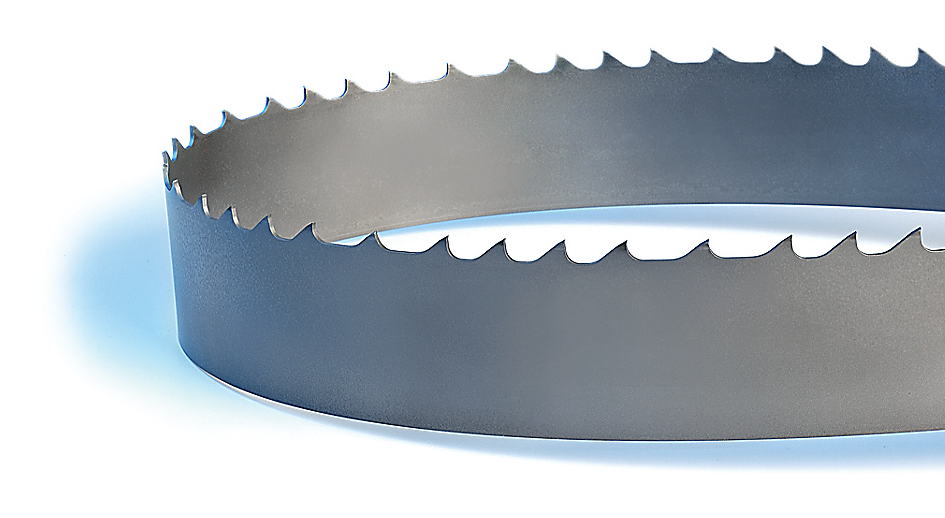

Lenox Contestor GT™
High-quality cuts
STRAIGHTER CUTS ON LARGER, HARD-TO-CUT MATERIALS
Unique trench design for profile reinforcement
OPTIMAL CHIP FORMATION ON COLD-FORMING ALLOYS
Precision ground teeth – smoother tooth and trench surface
Patented special tooth setting and profile
Extra information
Application
Mold steels, Stainless steels, Tool steels, Titanium alloys, Nickel-based alloys (Inconel)
Height
27 mm, 34 mm, 41 mm, 54 mm, 67 mm, 80 mm
Width
0.90 mm, 1.07 mm, 1.27 mm, 1.60 mm
Teeth per inch
0.7/1.0, 1.0/1.3, 1.4/2.0, 2/3, 3/4, 4/6
Specifications & Application
| Width & thickness | TPI (teeth per inch) | |||||
|---|---|---|---|---|---|---|
| In millimetres | 0,7/1,0 | 1,0/1,3 | 1,4/2,0 | 2/3 | 3/4 | 4/6 |
| 27 x 0,90 | ✔ | ✔ | ✔ | |||
| 34 x 1,07 | ✔ | ✔ | ✔ | ✔ | ||
| 41 x 1,27 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 54 x 1,27 | ✔ | ✔ | ✔ | |||
| 54 x 1,60 | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 67 x 1,60 | ✔ | ✔ | ✔ | ✔ | ||
| 80 x 1,60 | ✔ | ✔ | ✔ | |||
